How To Install A Passap Duomatic 80 Racking Handle

Elaine asked in the comments,

Just found your Web site this morning and am so happy I just want to get started kniting this baby blanket as soon as I find out how to install the racking handle and how to put the deco on to the front bed. Any help you can give will be greatly appreciated. Thank in advance. Elaine

The racking handle is easy to install. The only catch is you have to give it a good push at the end so it pops into the socket that shifts the beds back and forth. Follow my simple 9 step photo tutorial and you will be up and racking in no time.

passap racking handle step 1Locate your Passap racking handle.


passap racking handle step 2Hold it with the plastic clip up at the left end of the knitting machine as you face it.


passap racking handle step 3Begin inserting handle. From the side you will see a metal bracket with a hole. Slide the racking handle through it.

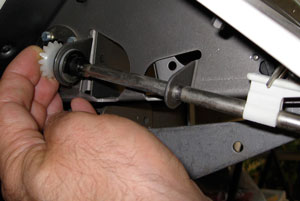

passap racking handle step 4Continue sliding the handle up to the racking gear mechanism.

You can’t see it in the pictures, but there is a slot in the gear holder. The metal tab on the handle slides into that opening. Rotate the handle until the tab fits in the slot.

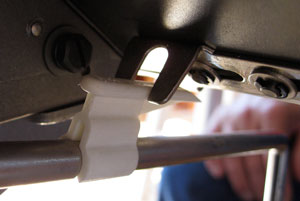

passap racking handle step 5Make sure the plastic guiding clip is upwards and resting in its slot. The handle freely pivots around this plastic clip. It moves the pointer on the front bed that tells you if you have racked to the left or right.


passap racking handle step 6This is the tricky part. You need to pop the handle into the racking mechanism. You can either hold the knitting machine on the back side of the racking mechanism or…


passap racking handle step 7…hold the machine at the back of the metal frame. With your right hand, push the racking handle straight in until you feel it pop.


passap racking handle step 8Here is the racking handle before it is popped into place. Notice how much of the metal tab on the handle, just outside the racking mechanism, you can see.


passap racking handle step 9Here the racking handle is set in properly. Notice how little of the metal tab on the handle is visible.


To remove the handle, simply reverse the steps. The hardest part is giving the handle enough of a tug to pop it out of the racking mechanism.

Make sure you pull straight. DO NOT wiggle the handle back and forth in an attempt to loosen it. It doesn’t loosen. You could damage the racking gears.

Once it pops out, it simply slides out of its track.
